SHOCK Ozone Meter for Air (0-20ppm)
Verify Ozone Levels During and After Shock Ozone Treatments
Measures Output from Ozone Generators
Test Ozone Levels from 0-20ppm
Description:
BoiE offers a value-priced ozone
meter tailored to measure the ozone concentration in the air from Shock ozone generators. Measuring ozone levels
is important to verify the efficacy of an ozone treatment to ensure that shock ozone levels* are reached to disinfect
an area.
Most ozone meters or ozone detectors are expensive and only measure up to 1 parts per million (ppm) to verify safe
ozone levels in occupied areas. BoiE's Shock Ozone Meter measures 0-20 ppm to verify disinfection-level ozone during
an ozone shock treatment, and that safe levels have returned after the ozone treatment has finished.
The Shock Ozone Meter has advanced features and functions found on more expensive ozone monitors including time
and temperature detection, alarm setting and recording, a high-resolution LCD with backlight and O3 gas calibration.
The rechargeable lithium-ion battery lasts up to 10 hours of continuous use, accepts a standard micro-USB cord
and can be plugged into any USB charger. The unit's accuracy is +/- 5% full scale, and has the fastest O3 detection
of any portable unit on the market.
How it Works:
The Shock Ozone Meter uses a highly-accurate electrochemical cell sensor made in the United Kingdom (UK). The LCD
screen indicates the time, temperature, O3 concentration in parts per million (ppm), battery state and alarm settings.
The alarms include sound, lights and vibration. The unit can operate in high heat and humidity, and the unit has
a protection rating of IP65 (total dust and low pressure water jets).
The ozone meter can be placed behind a window or another transparent surface inside the ozone treatment area in
order to observe the changing ozone ppm concentration levels. We also include a sampling air hose that can be connected
from a sealed treatment enclosure to the calibration cover on the ozone meter when no transparent surface is available.
Charging time is approximately 4-6 hours. The replaceable sensor life is approximately 2 years of normal use or

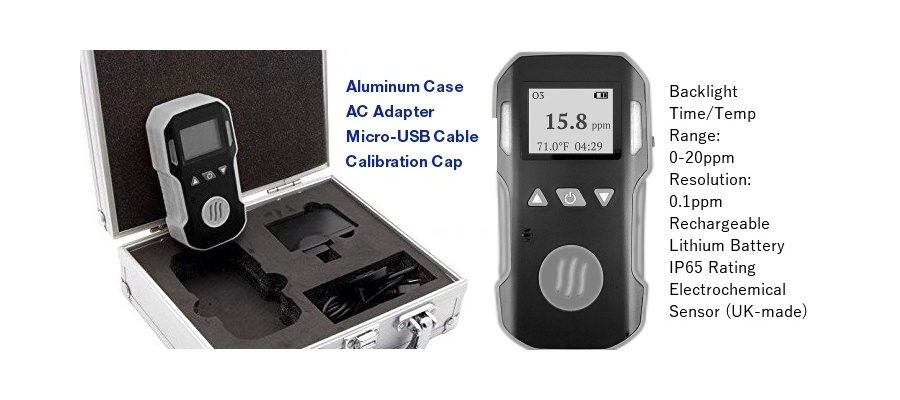

longer if the unit is well-cared for. The unit comes inside an aluminum carry case that includes the detector,
adapter, cable, calibration cover, sampling tube and user manual.
Bottom Line:
BoiE's Shock Ozone Meter is an essential tool for verifying that shock ozone levels* have occurred in a particular
space. This knowledge can be helpful to determine the efficacy of an ozone generator and to establish a baseline
for future treatments in the same environmental conditions. The unit is high-quality and has the best price-point
on the market. Comparable products retail 2-3 times higher. The unit can be calibrated and upgraded with new sensors.

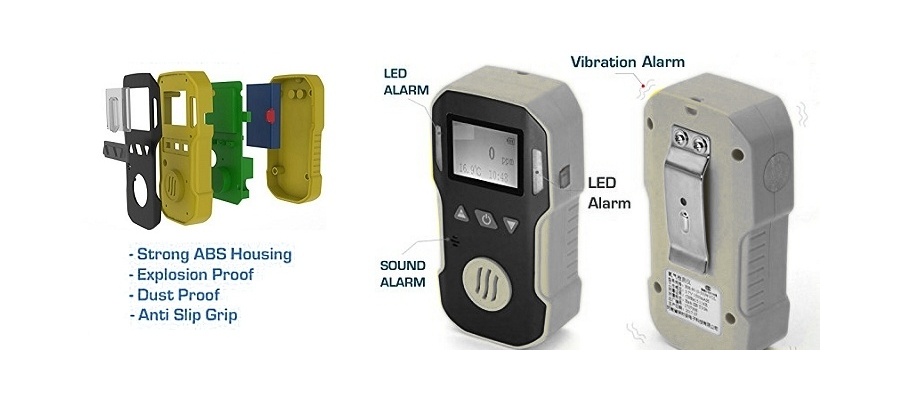

Features:
- Light, portable, easy to grip
- Belt-clip for quick access
- Ozone-resistant ABS housing
- Protected from dust and water
- Lasts up to 10-hours on a charge
- Replaceable Ozone Sensor
- Alarm setting and recording
- 1-year unlimited warranty and lifetime customer support
- 30-day money-back guarantee (excludes shipping)
Specifications
|
|
|
Detection Range:
|
|
0-20ppm |
Detection Resolution:
|
|
0.1ppm |
Protection Rating:
|
|
IP65 (dust-tight, water spray) |
Error Range:
|
|
<+-5% of Detection Range |
Recovery/ Response
|
|
< 30 seconds |
Operating Temp:
|
|
-4 F to 122 F. |
Operating Humidity:
|
|
< 95% RH |
Battery
|
|
DC3.7V Li-Ion 1500mAh |
Size:
|
|
4.3 x 2.4 x 1.2 inches |
Weight:
|
|
4.7 ounces |
Accessories:
|
|
Case, Adapter, Cable, Calibration Cover, User Manual, Air Line |
*Shock Ozone Treatment
A minimum ozone concentration of 10 parts per million is required to reach an effective germ/virus/mold-killing
level.¹ Don't be fooled by manufacturers that claim to shock treat large spaces with a small or unspecified
amount of ozone. Approximately 1,000 mg/hr of ozone is required to shock treat 100 sq. ft. Low-power ozone generators
may leave an ozone scent but odors will quickly return.
