BoiE Ozone Generators, Hydroxyl Generators & Training
  • COMPACT 16K 2-Position Ozone Generator
  • COMPACT 16K Horizontal
  • Optional Hose and Flange Attachment
  • Stainless Steel Ozone Electrodes
  • COMPACT 16K Vertcal Position
  • BoiE SHOCK COMPACT 32K 2-Position Ozone Generator

SHOCK COMPACT 16K Ozone Generator (2-Position)
Powerful Ozone Output: 16,000 mg/hr with Stainless Steel Plates

$449 Buy
Buy

Click to order

Great for Apartments, Motels, Basements and Vehicles
Treats Up to 1,600 Square Feet, Includes 1-Touch Timer

Power Matters. We use the latest high-frequency electronic transformers and space-saving electrode design that produces 4x more ozone than older technology, reducing application times by 75 percent!

Description:

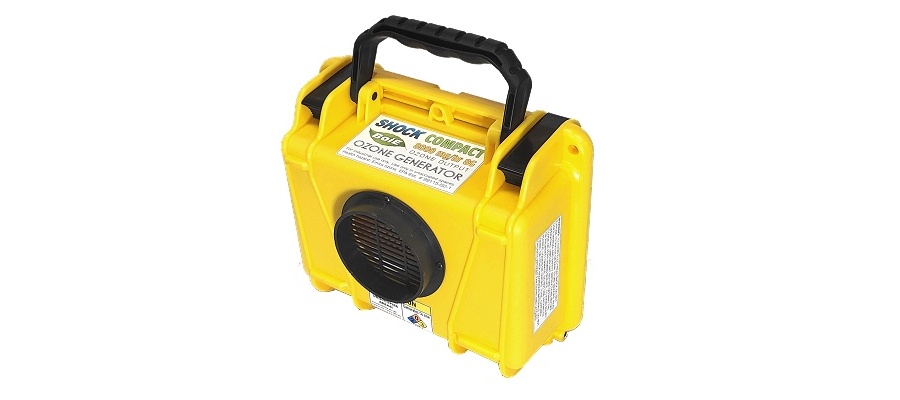

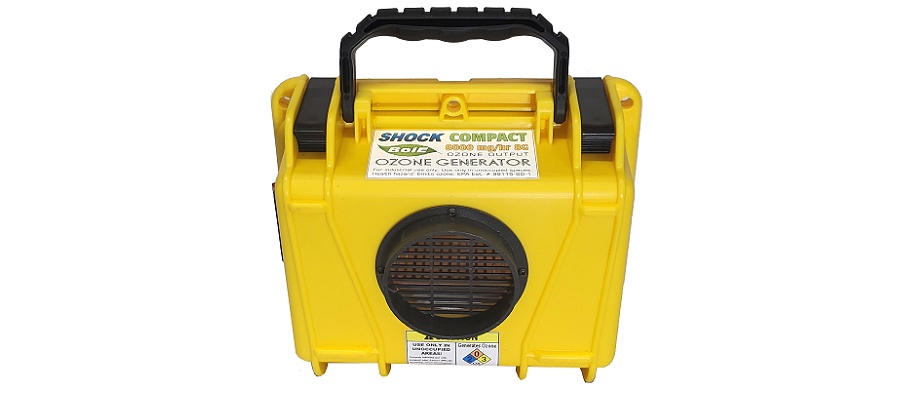

The BoiE Shock Compact 16K is an ultra compact but powerful corona discharge ozone generator that produces 16,000 milligrams of ozone per hour (from ambient air) for shock ozone treatment* of spaces up to 1,600 sq. ft. Just a 15-minute treatment with the Shock Compact generates more ozone than the average imported ozone machine can produce in one hour.

BoiE designed the Shock Compact to be the perfect ozone generator for families or property owners struggling to solve serious odor problems in small homes, apartments or vehicles. Our customers have often had limited success with other products, and are looking for a better quality ozone generator with the power to get the results they need, and at a reasonable price.

How it Works:

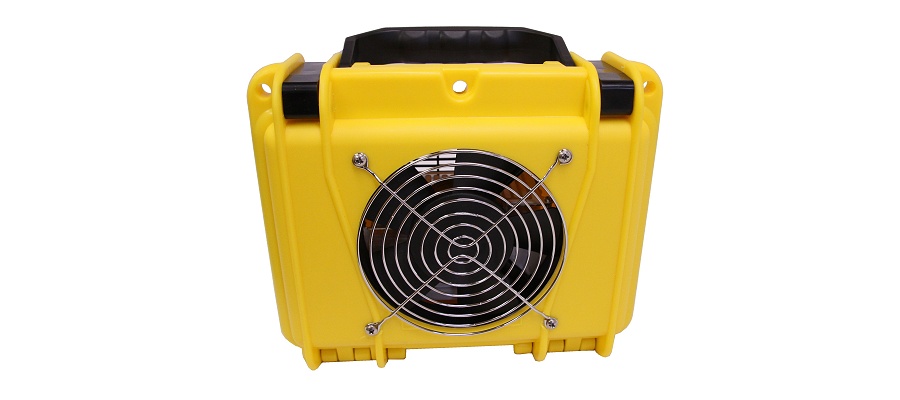

The Shock Compact has a versatile design and is simple to operate, service and repair. The rugged case can sit vertically to direct ozone into a central air return, or horizontally to push ozone upwards and saturate a space. A powerful 110 CFM intake fan circulates fresh air across ultra high-quality 304 stainless steel ozone plates, then blasts the ozonated air out of the machine.

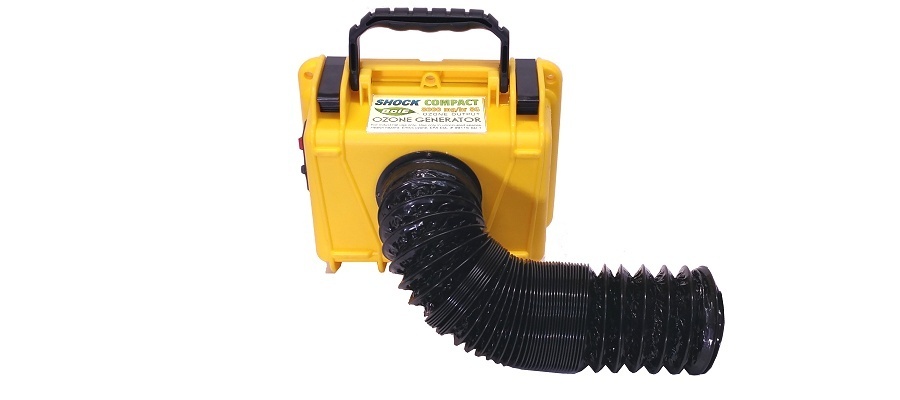

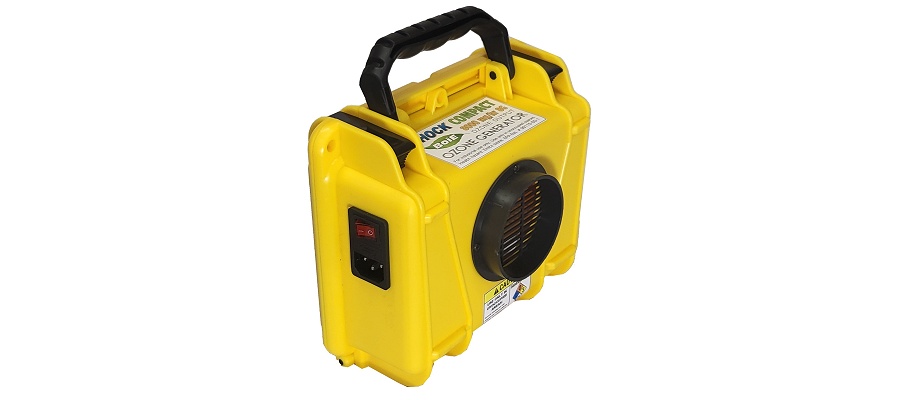

The enclosure can be opened for cleaning with just two snaps and secured with any small lock. Comes with BoiE's universal power Inlet that accepts standard, straight-blade extension cords, allowing you to leave the tangled power cords behind, and an accessory power outlet that lets you connect equipment such as fans or additional ozone generators. The unit also accepts an optional hose attachment for the top that can be used to funnel ozone into vehicles, air ducts and small spaces.

At just 5 pounds and with a compact 11 x 10 x 7 inch footprint, the Shock Compact is incredibly powerful for its small size and can be upgraded to 32K if you need more power. BoiE ozone generators will never become obsolete and with minimal maintenance, can last a lifetime. Plus, we stand behind every machine we sell with a money-back guarantee and lifetime customer support.

Bottom Line:
The BoiE Shock Compact 16K is an affordable ozone machine with enough power for most medium-sized jobs. Corona discharge ozone is most beneficial under cool and dry conditions, preferably under 75°F, or when air conditioning can be used to cool and dehumidify an interior environment. When the environment is very warm or humid and cannot be cooled or dehumidified, UV ozone is often a better choice. Corona discharge ozone machines cost less and produce more ozone for the energy expended than any other method and can last for years with minimal maintenance.

Like all BoiE products, the SHOCK COMPACT was designed by professionals for professionals to be a field-ready workhorse that exceeds, outlasts and outperforms the competition.

FREE $299 BONUS
Ozone Remediator Certification (Limited Time Offer)
Your purchase includes BoiE's exclusive 32-hour, comprehensive Ozone and Hydroxyl Remediator certification course. Learn how to properly apply ozone and utilize hydroxyl generation for odor removal, disinfection and restoration applications. Learn the protocols, how to identify and assess the source of odors, corrective measures and preparing treatment reports. Provides a path for starting a new business or expanding your current services. Course includes a helpful Online DVD with demonstration videos. You can enroll and simply use the course material as a reference if you don't need the certification.

Features:

  • Unbreakable, stackable 2-position rugged case
  • Padlock holes for added security
  • Folding handle for easier storage
  • Vertical or horizontal positioning for directing ozone
  • Pre-drilled, open space to upgrade to 32K output
  • Accepts optional hose attachment for use with vehicles and ducts
  • Marine-grade straight blade inlet receptacle and accessory outlet

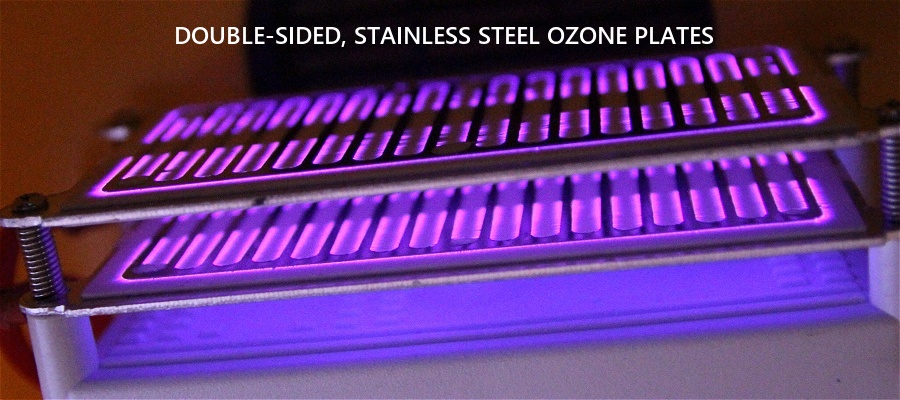

  • Long-life 304 stainless steel ozone plate electrodes
  • 304 Stainless Steel fasteners and hinges
  • Quick-change "solder-free" ozone plates, just 4 screws
  • Marine-grade tin-plated copper wiring
  • Side-mounted transformer for cooler operation
  • Waterproof heat shrink electrical crimp connectors
  • Anti-oxidant compound applied to copper wire connections
  • Dielectric silicone paste used to protect metal parts from corrosion
  • Overload-protected, short-proof transformers
  • BoiE warranty which exceeds the industry standard

Specifications

Type of Use:

Commercial shock treatments with low to moderate humidity

Case Material:

Rugged polymer case with stainless steel hinge pins

Case Type:

Crush-resistant, stackable, lockable, lifetime guarantee

Orientation:

2-position, lay flat or stand upright

Color:

High Visibility OSHA Yellow

Shock Coverage:

Maximum 1,600 square ft building with 10 ft ceilings

Run Time:

75 minutes per 1,000 square ft for heavy odors, 1:45 max run time

Fan:

110 cubic feet per minute (CFM), Heavy-duty Aluminum, Dual Ball Bearings

Hose Attachment:

Optional flange/duct attachment available

Electrical Rating:

120V~60Hz .95 Amps

Overcurrent Protection:

Yes, replaceable 5x20mm fuse

Generation Method:

Corona Discharge

Output:

16,000 mg/hr (ambient air)

Plates:

Double-sided Ceramic, 304 Stainless Steel Electrodes
Working Temperature: 14°F-104°F, 35%-85% Relative Humidity (RH)

Upgradeable:

Yes, up to 32,000 mg/hr

Power Connection:

Straight Blade Inlet Receptacle, Marine-grade

Accessory Outlet:

Yes, 3-prong grounded

Power Switch:

Yes

Size:

11 x 10 x 7 inches

Weight:

5 lbs

Accessories:

20' Grounded Power Cord
1-Touch Countdown Timer (15/30/60 min, 2/4/6 hrs)

*Shock Ozone Treatment
A minimum ozone concentration of 10 parts per million is required to reach a fully-effective germ/virus/mold-killing level as established by the EPA's National Risk Management Research Laboratory.¹ Don't be fooled by manufacturers that claim to shock treat large spaces with a small or unspecified amount of ozone. An ozone generator must produce around 1,000 mg/hr of ozone to shock treat an average 100 sq. ft. room. Low-power ozone generators will leave an ozone scent but odors will quickly return.

1. Raymond S. Steiber, Ozone Generators in Indoor Air Settings, National Risk Management Research Laboratory, Page 8 (1995)
